Professor Merryweather | Fall 2023
"Mosaic Towers" experimented with different co-housing apartment unit types in relation to the site in Bedford-Stuyvesant.
The studio introduced various mechanical systems: HVAC, Boilers, roof facades, drainage systems, columns grids etc. Multi-layered opposites attract, a theme that was applied throughout the project.

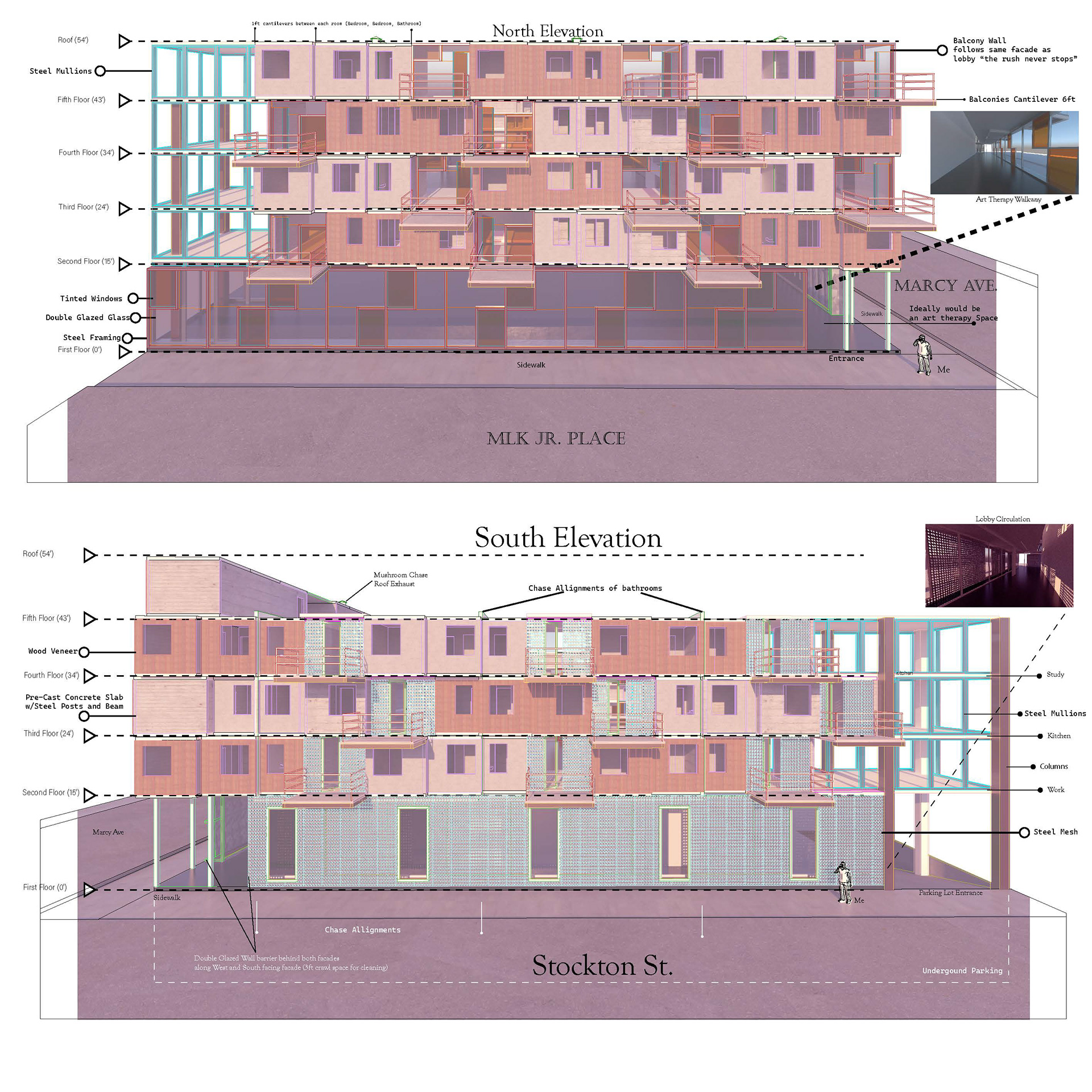

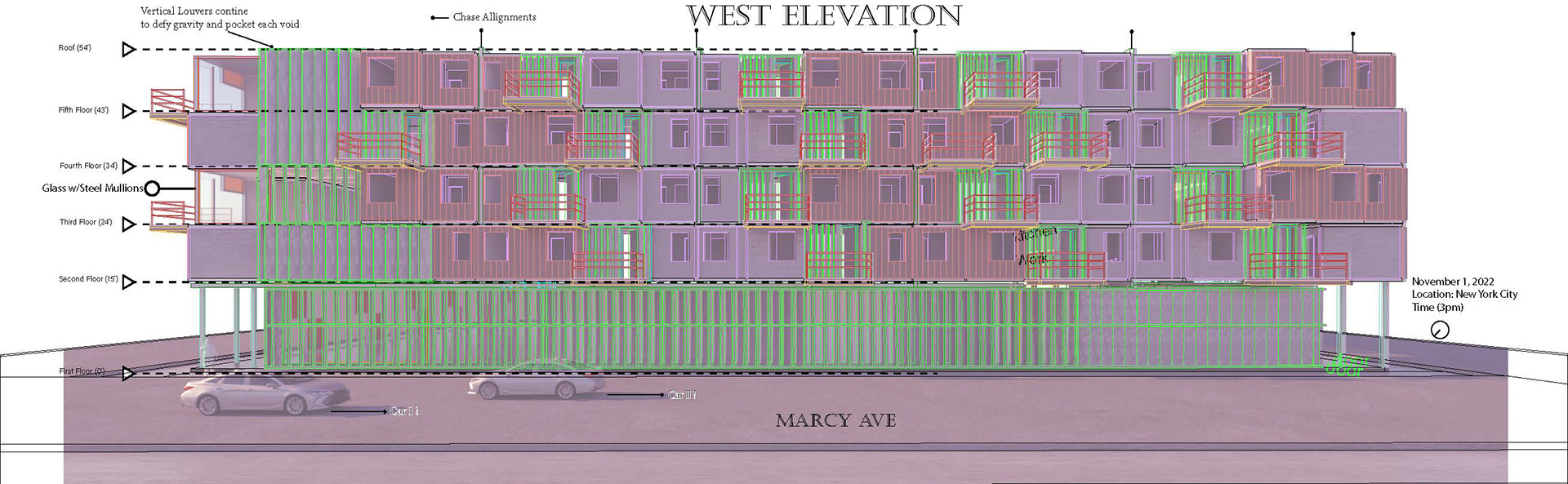

North, South and West Elevations
Directional facades were determined based on sun studies conducted using the Ladybug Grasshopper plug in.
Interior meets Exterior
(added walkthrough video can be accessed by clicking on image below)

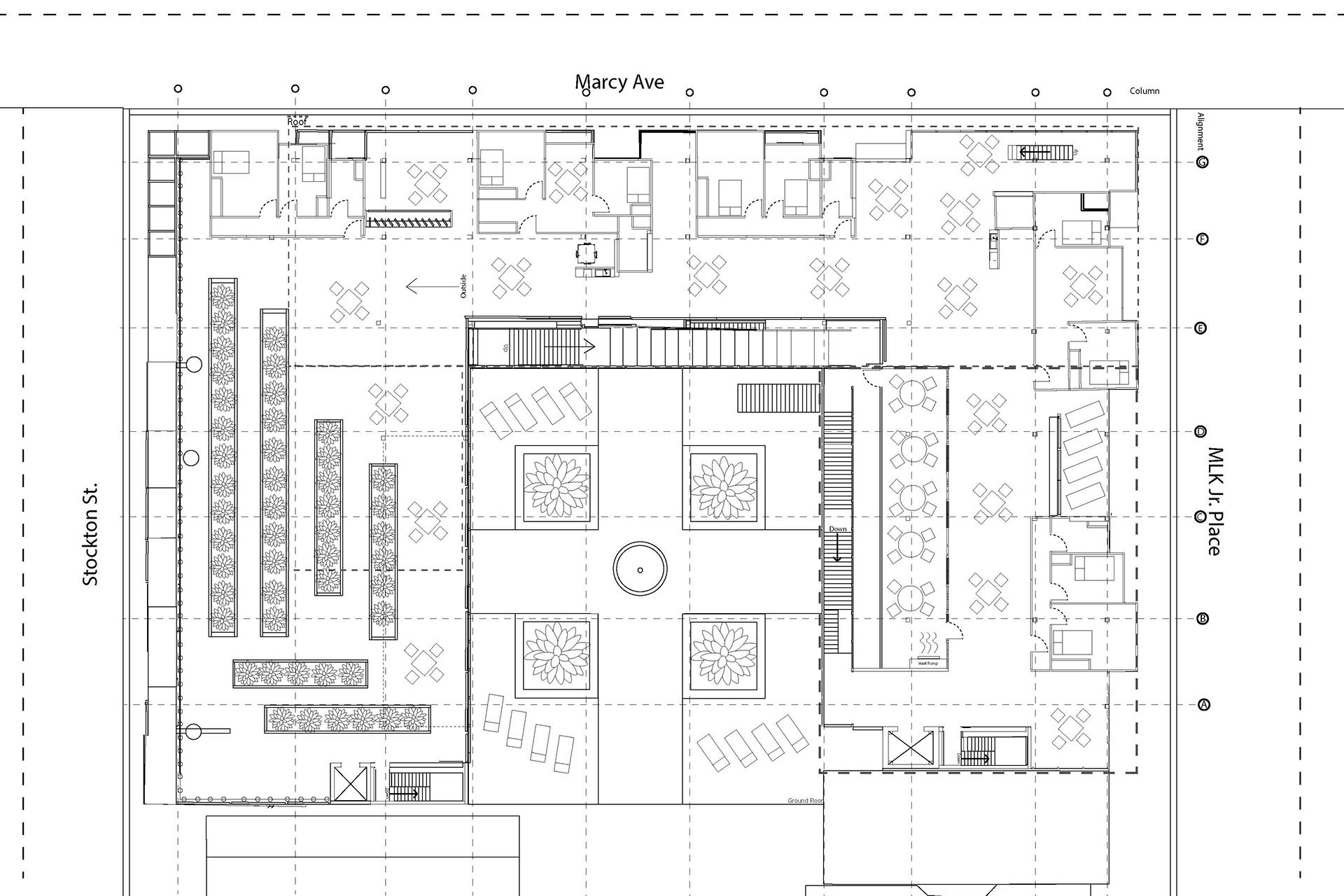

Fifth Floor Plan

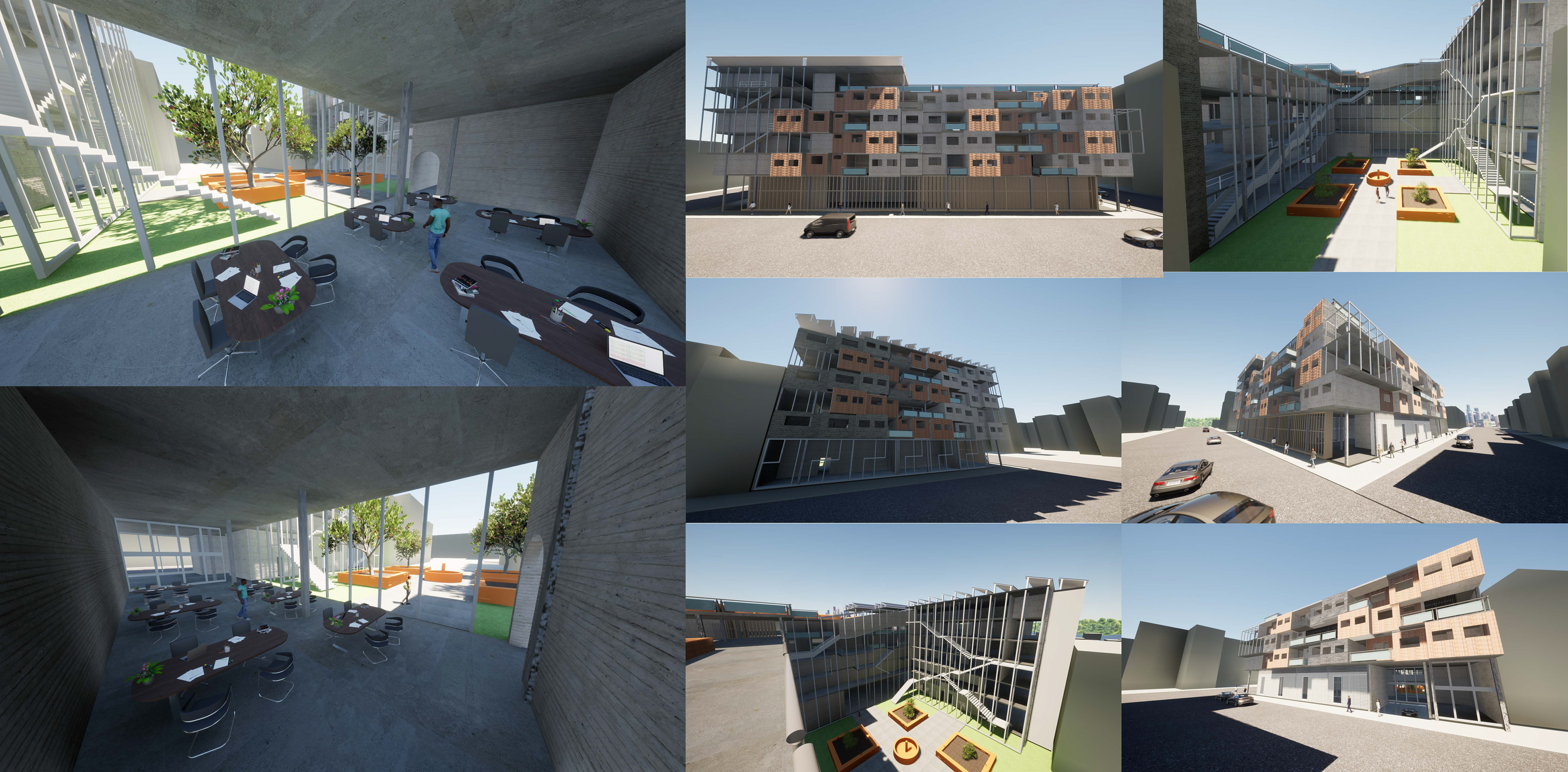

Experimental Exterior Render (V-Ray)

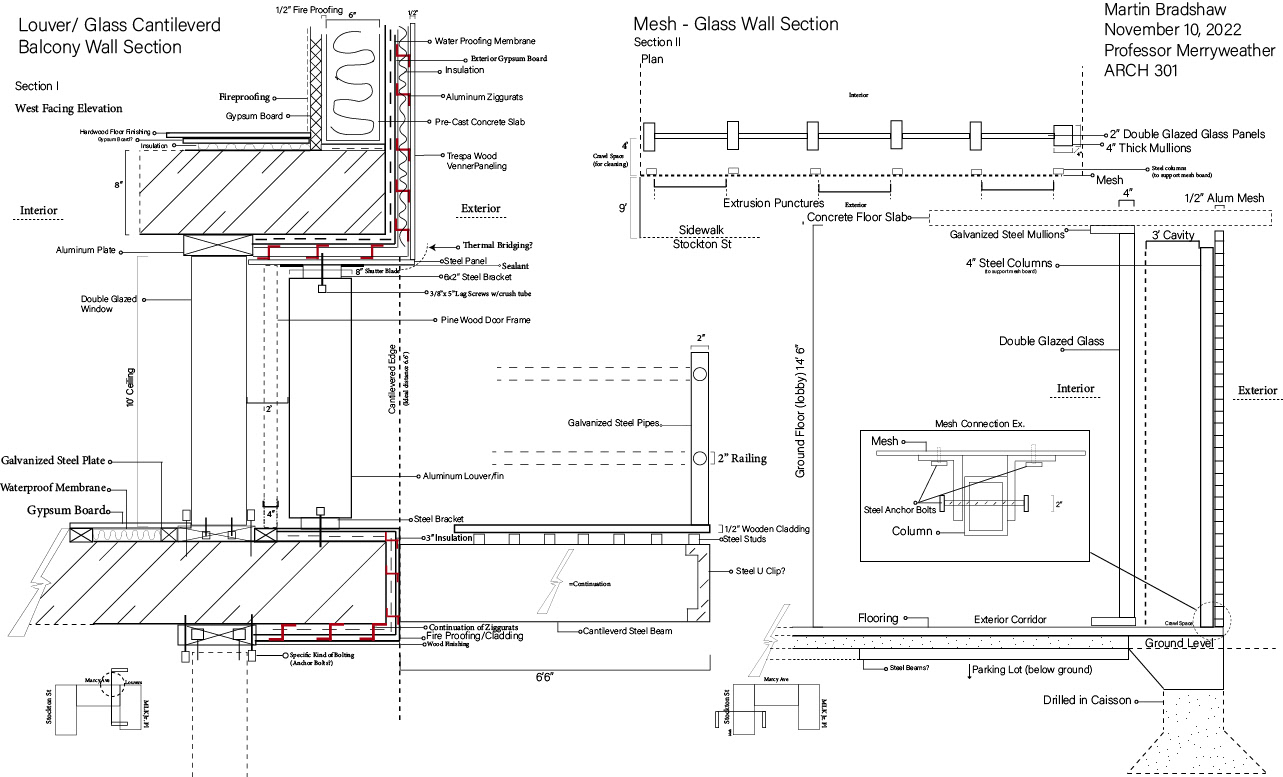

Theoretical wall section assemblies of each facade. Not in scale, but in sketch form.

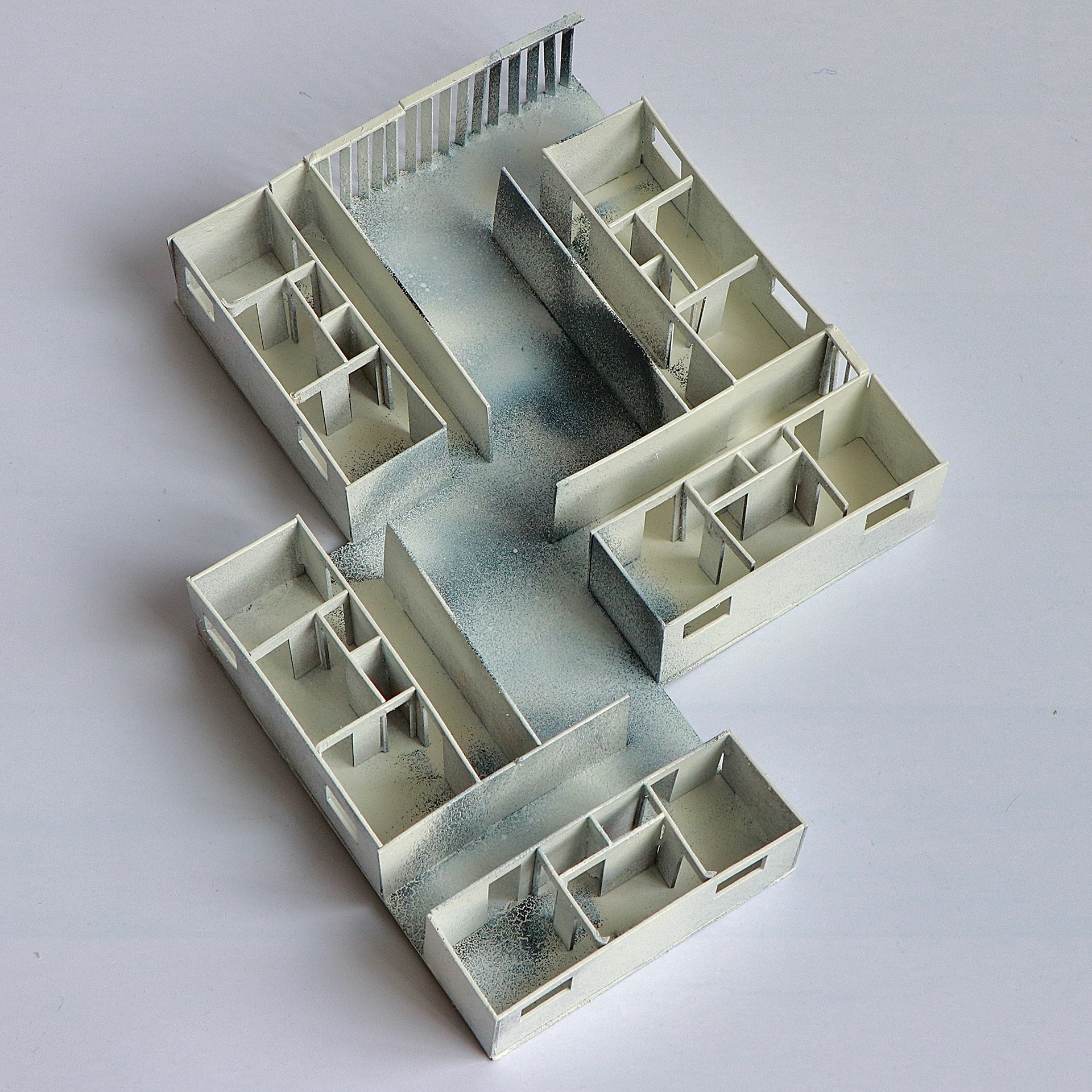

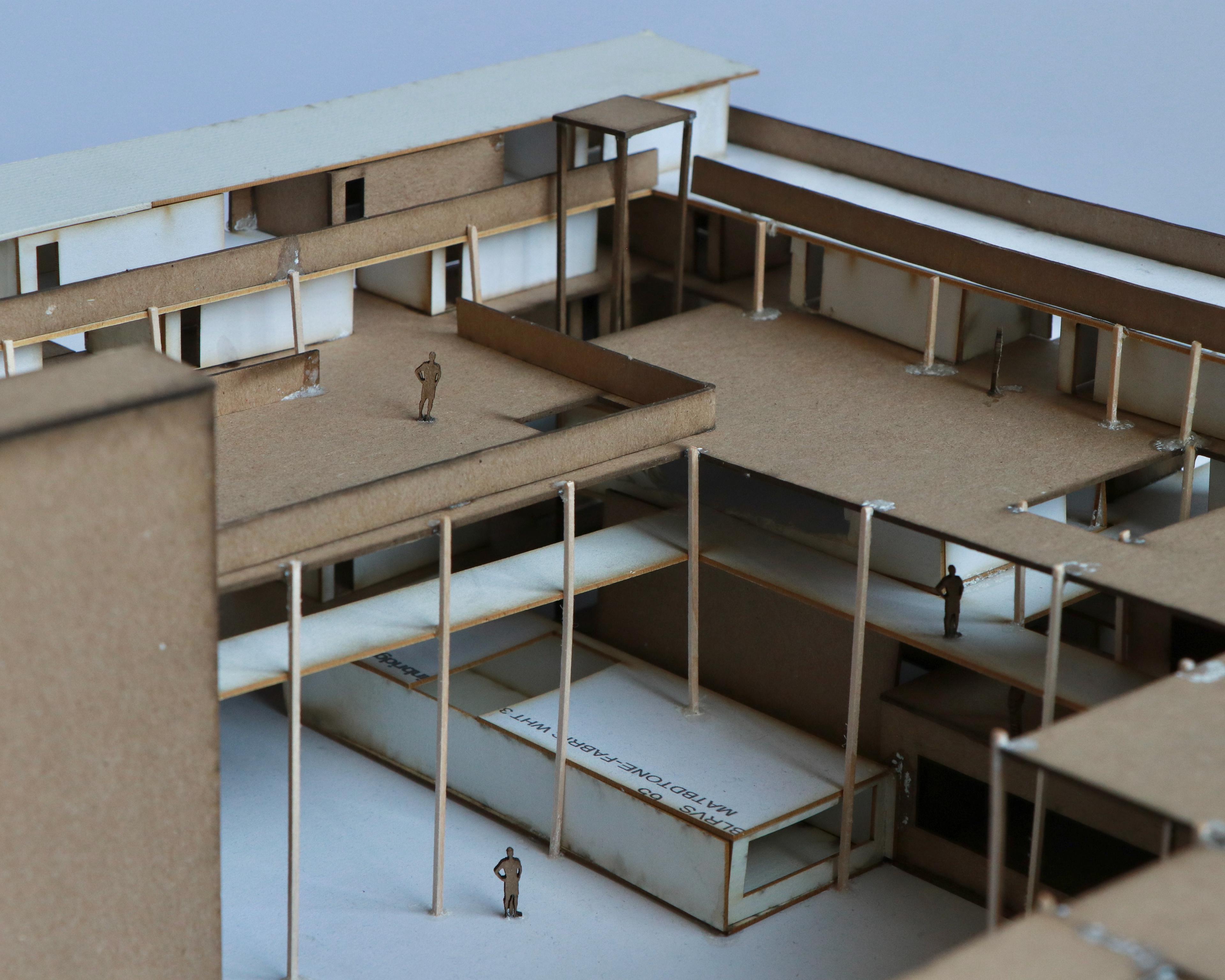

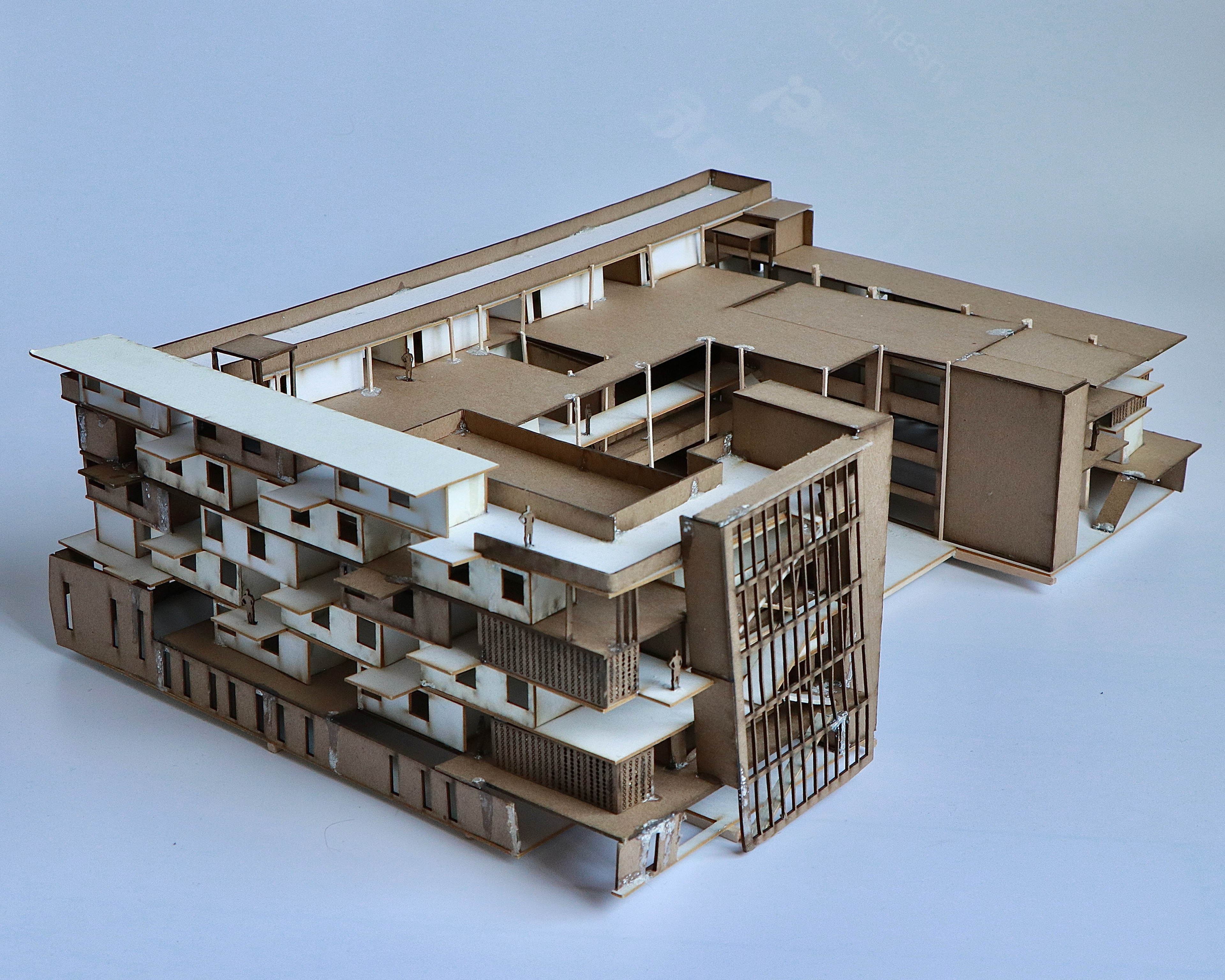

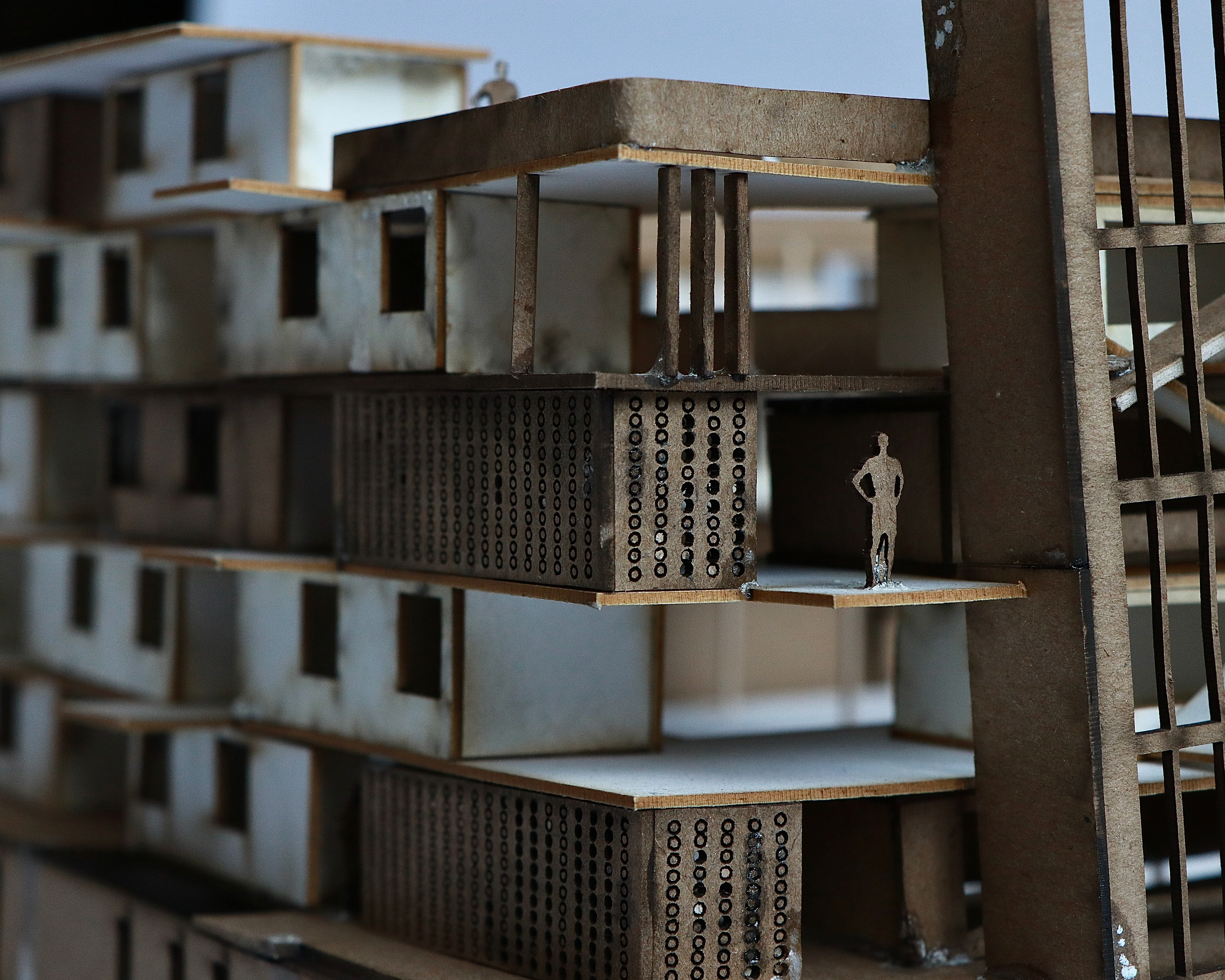

SKETCH MODELS

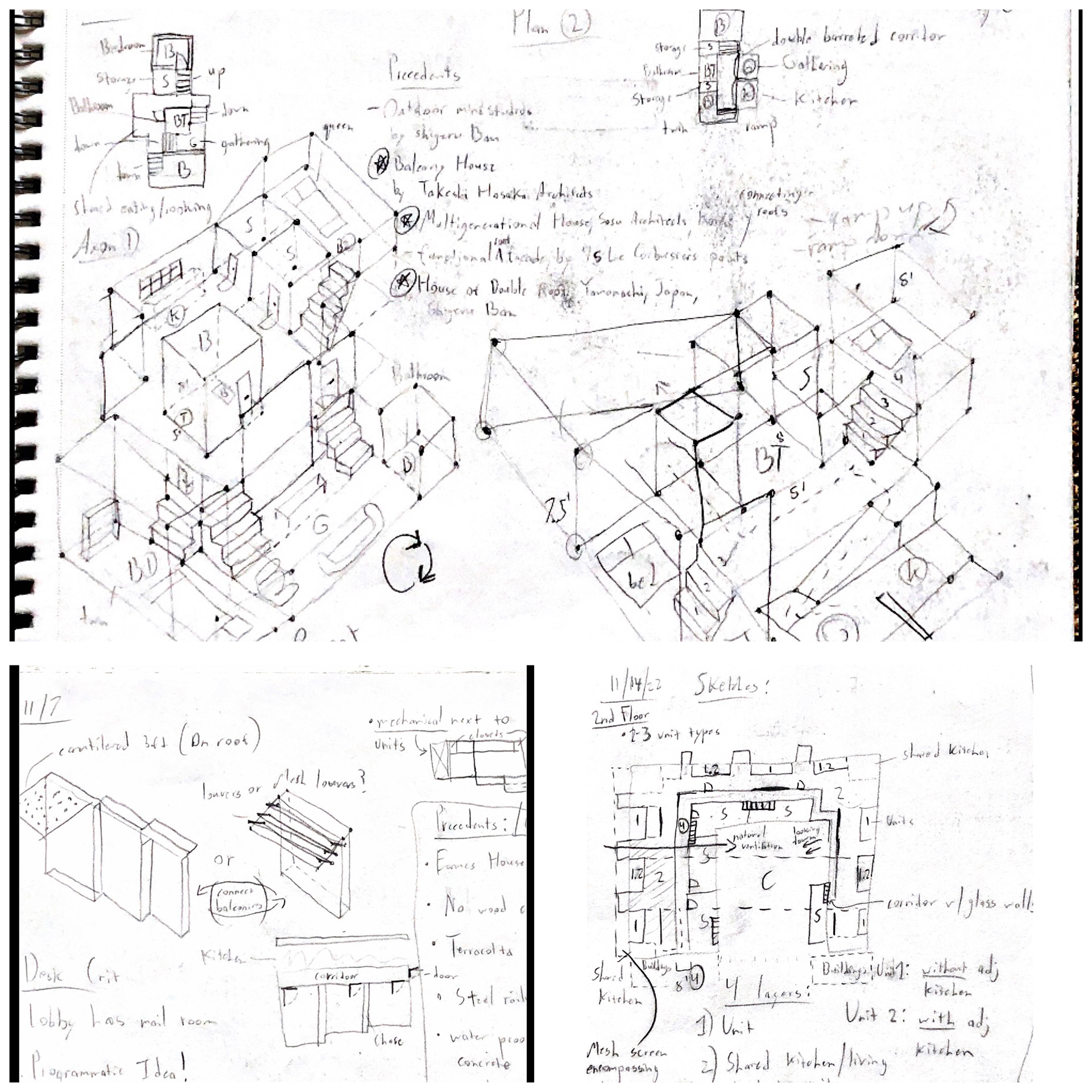

Additional Schematic Sketches
